Flow Chart of Final Inspection for Shirt

Final Inspection Flowchart of Shirts
Md. Abu Sayed
Founder of Textile Apex
Pabna Textile engineering college, Pabna, Bangladesh
Email: sayed1952@facebook.com
Cell : +8801745214773



Introduction:
The fit and fashion of garments are very much important. The garments made in standard measurements do not necessarily mean that those will fit properly, will be good to look at, or will be comfortable for wearing because fitting depends on pattern shape, pattern ratio, and on the dimension of the pattern. The total inspection is done in the final inspection. There is no opportunity to inspect a complete garment before this stage. This is mainly important from the buyer’s point of view.

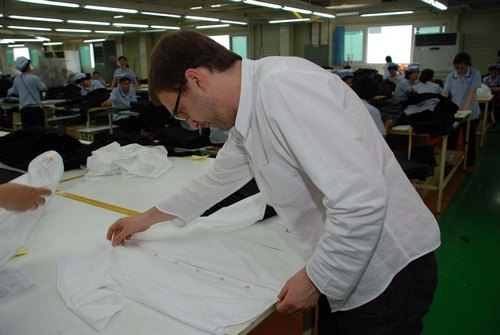

Final inspection of shirt
Final inspection of shirt
Before the inspection of shirts, a flowchart has to be made and the final inspection is to be done as per the flowchart. The sample flowchart for the inspection of men’s shirts has been given below –

Flowchart of Men’s Shirt Final Inspection


Collar

Size

Button and Button hole

Pocket

Hem

Yoke and Shoulder

Side seams

Cuffs

Finished appearance

Now I’ll describe the steps in brief in the following table –
Location
Inspection for
Collar
Need to check whether: the both points are in the same length (± ¼ inch), properly matching of check and stripes in both ends, sewing is done properly, broken stitches are not, the collar remains properly flat etc.
Size
Need to check whether as per the size label of the shirt, the measurements of the various parts of the shirt are ok with the measurement sheet and they are within the tolerance level.
Button & Button hole
Need to check whether buttons are correct and placed in equal distances, sewn properly, no broken or defective button, pattern matching (± 1/8 inch) properly done etc.
Pocket
Need to check whether the upper edge of the pocket is horizontal, balance sewing or puckering and any other defective sewing, the two upper corners are secured by back stitched or not, proper matching of stripes, and checks or pattern (± 1/8 inch) are maintained or the pocket is placed properly flat.
Hem
Need to check whether the stitches are balanced or puckering, the edge is without sewing, presence of skipped stitches, sewing in the edge (within 1/16 inch) done or not?
Yoke and Shoulder
Whether the pleat (if present) has been done at correct distance and correct place, stitches are balanced, no puckering, no skipped stitch etc.
Side seams
Whether properly matching of the checks, stripes and patterns; if the stitches are balanced, no defects in stitches, any edges with sewing?
Cuffs
Whether matching of stripes, checks or patterns (± 1/8) are maintained with the sleeve. Or, any defects in seams or in stitches.
Finished appearance
Need to check whether the ends of the yarns are seen outside, any dust or oil spot, any fabric defect or shade variation etc.
