Production Flow Chart of Knitting Section

Production Flow Chart of Knitting Department
Raju Tex
Knitting Technologist,
B.J.Group, Mawna, Gazipur
Chittagong Textile Engineering College

Knitting is one kind of fabric manufacturing process. This type of fabric is produced by forming loop. The Knitting Manager is responsible for production of knitting section. In this article I will give a production flowchart of knitting department in fabric manufacturing industry. It starts from collecting order from buyer and will end by delivering the product in dyeing unit.

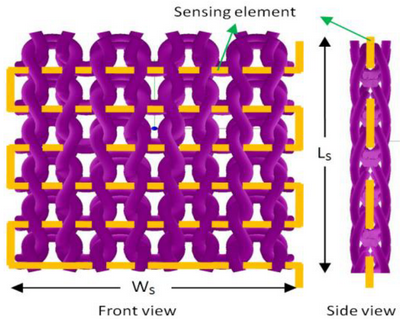

Knitted fabric structure
Knitted fabric structure
Production Flowchart of Knitting Section

Executive director takes order from Buyer

Merchandiser estimates total amount of yarn of production

Knitting manager gets production order sheet

Senior Production Officer ordered by K.M. and orders Production officer and Technical in-charge.

Production officer fixes up stitch length and GSM with mechanical fitter.

Definite operator operates machine in his full conscious and Attention.

Mechanical fitter fixes machine if there is any m/c fault.

Supervisors keep daily production report and assure m/c is OK.

Fabric roll is checked by a troop of inspectors in inspection unit and weighted.

Final product to the required amount is delivered to dyeing unit.
