Flow Chart of Cone Under Picking Mechanism

What is Picking?

Picking is the second primary motion in weaving. The action of inserting weft yarn through the warp yarns is called picking. Under picking is controlled by a picking cam which is fixed on the bottom shaft. At first, the motion comes from the motor and m/c pulley. Picking is two types. One is over picking and another is under picking. In the previous article, we have discussed over picking mechanism. Now I will give a flowchart of the under cone picking mechanism of the loom.

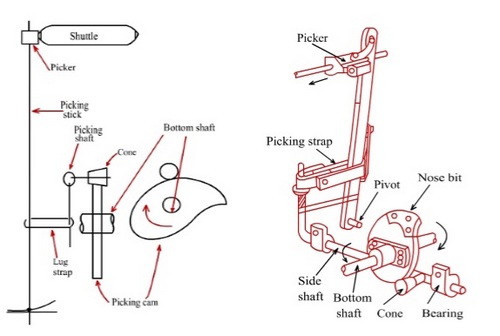

 Cone under picking mechanism

Cone under picking mechanism

Working Flow Chart of Cone Under Picking:

The tappet is driven by the bottom shaft

When the picking tappet strikes the picking cone, it displaced and the side shaft is turned

The turning action of the side shaft pulls the picking stick which is connected to the side shaft by a picking a strap

The lower end of the picking stick is pivoted. So that is pulled with the pulling of side shaft

Then the picker connected to the picking arm strikes the shuttle and causes it to pass through the warp shed

Picking is done

Main parts:

  1. Side lever.
  2. Side shaft.
  3. Tappet / cam.
  4. Nose.
  5. Picking stick.
  6. Picker.
  7. Shuttle.
  8. Shuttle box.
  9. Motor.
  10. Motor pulley.
  11. Rase board.
  12. Bottom shaft.
  13. Crank.
  14. Crank arm.

Working procedure:

The motor supplies the power, when the motor pulley rotates the m/c pulley is also rotate and the crankshaft wheel gets power for rotating. Thus crank shaft wheel teeth are half the bottom shaft wheel. So, the crankshaft wheel rotates two times that time the bottom shaft wheel rotates one time. Then picking wheel also rotates due to fixed. In the parallel pick method, a curved shoal fixed to the bottom of picking sticks rides on a horizontal plate fixed to the sley sword. When the bowl rotates and to give pressure on the side shoe and l- level moves to forward direction and weft is occurred.

You may also like: Working Flow Chart of Cone Over Picking Mechanism

Author of this Article:
Rofiquzzaman Raju
Fabric Technologist,
B.J.Group, Mawna, Gazipur
Chittagong Textile Engineering College
Contact: 01714419681
