Process Flow Chart of Batch Section in Textile Industry

Batching:

The batch section is a preparatory stage of dyeing. It is the receiving section of grey fabric and the sending section of grey fabric to the dyeing section which will dye. Batching is the process to get ready the fabrics that should be dyed and processed for a particular lot of a particular order. Process flow chart of batch section in the textile industry is as follows:

Process Flow Chart of Batch Section in Textile Industry

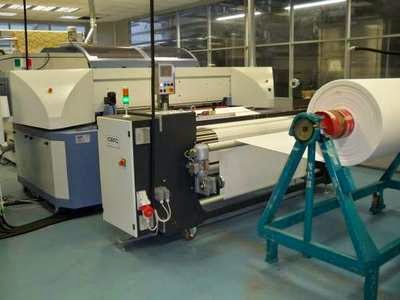

Fabric batching

Flow Chart of Fabric Batch Section in Textile Industry

Receive batch card from Grey In-charge

Make the priority as per the dyeing plan

Take one specific Batch card.

Read the Batch Card for your own understanding

Check the availability of fabric

Take the required quantity of body fabric from ware-house.

Make required no. of Rope maintaining equal length.

Take collar/ cuff as per size, keep the total weight.

Distribute the collar/ cuff or Rib in each rope equally unsure equal length

Stitch the fabric

Write down the weight against roll no. in the backside of the Batch Card.

Write the total weight in the Batch card

Put signature & date.

Fill up the production report form.

Function or purpose of the batch section:

Batching is the receiving section of grey fabric and sending section of grey fabric to the dyeing section which will dye. Batching is the process to get ready the fabrics that should be dyed and processed for a particular lot of a particular order.

  1. Roll-formed grey fabrics are received from the knitting section or other sources.
  2. Turning is done for grey fabric by turning machine if required.
  3. Prepare the batch of fabric for dyeing according to the following criteria.
  4. To send the grey fabric to the dyeing floor with a batch card
  5. Keep records for every previous dyeing.
Author of this Article:
Rana Sohel
 Executive Engineer
 Sunman Textile Mills Ltd. Chittagong
 Cell: +8801912-420118
 Email: [email protected]
